[1.3.1] GLSL Shaders (DoF, Bump Mapping, Waving Wheat, Dynamic Shadows, and More!)

#1025 Jan 28, 2011

xemnes

Redstone Miner
Join Date: 7/18/2010
Posts: 582
Minecraft: xemnes
Member Details

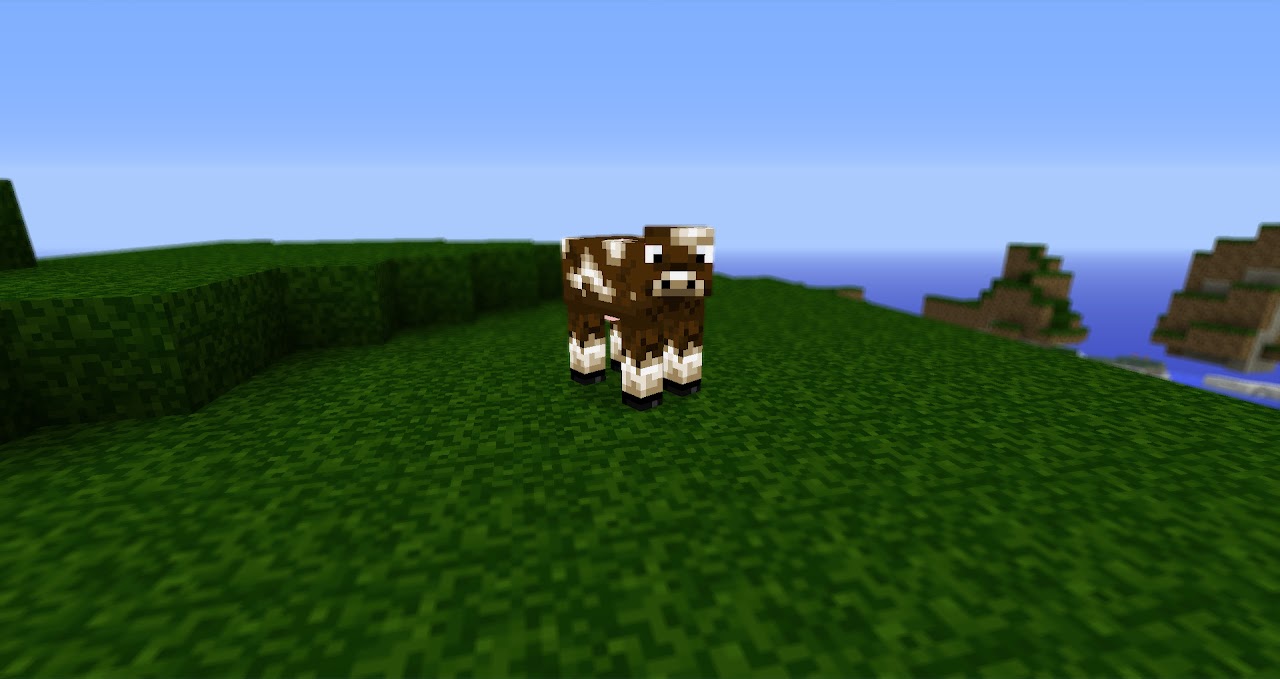

Quote from Inacio »
HD4870 user reporting in.
I get fullbright mobs.

i get the same prob, same with obtainable block items on the ground, it seems they totally lost their lightmaps

this happenes to all animals.... and blocks

im on an nvidia GT 330m mb pro 15"

Dedicated Creative Server: mc.xemcorp.com Website & info at: xemcorp.com (click)

#1026 Jan 28, 2011

graboy

Tree Puncher
Join Date: 11/3/2010
Posts: 16
Member Details

Im having lots of issues installing this mod, what directory am I supposed to put in the PATH var? A video tut would be very helpful.

Edit:

Also, these experiments your doing with the redstone torches would be awesome with lava...

This video is fake, but its concepts are awesome. You are so close to achieving this, you just need bump-mapping on the water.

#1027 Jan 28, 2011

Vire

Out of the Water
Join Date: 1/27/2011
Posts: 5
Member Details

Parallax mapping is hard to understand with out using dynamic lighting. That is the biggest reason why no one can really see it.

edit: I also think that specularity should be implemented next. Its hard to sell a parallax map with out a material system in place first.

#1028 Jan 28, 2011

stoutrouge

Diamond Miner
Join Date: 10/21/2010
Posts: 846
Member Details

Quote from elias79 »
Quote from golf1052 »
It doesnt work with my AMD video card. I have an integrated graphics card. The Radeon HD 4200.

Thats weird, try udate your drivers ?

The radeon 4200 will not work with this mod..

#1029 Jan 28, 2011

daxnitro

Gold Miner
Join Date: 1/7/2011
Posts: 382
Member Details

Quote from Vire »
Parallax mapping is hard to understand with out using dynamic lighting. That is the biggest reason why no one can really see it.

Yep. :tongue.gif: The lack of real light sources is killing me. Redoing the lighting would be the single best thing that could happen to this game. I've experimented a lot with this and hope to eventually find a solution that both looks good and performs well. In an update soon I might at least try making the sun and moon light sources.

#1030 Jan 28, 2011

daxnitro

Gold Miner
Join Date: 1/7/2011
Posts: 382
Member Details

Quote from xemnes »
Quote from Inacio »
HD4870 user reporting in.
I get fullbright mobs.

i get the same prob, same with obtainable block items on the ground, it seems they totally lost their lightmaps

this happenes to all animals.... and blocks

im on an nvidia GT 330m mb pro 15"

I'll see if I can figure out what's causing this.

#1031 Jan 28, 2011

Baleur

Iron Miner
Join Date: 11/11/2010
Posts: 298
Member Details

Quote from blackops7799 »

Combined the bloom, ssao, and dof that were all posted here into one.

uniform sampler2D sampler0;
uniform sampler2D sampler1;
uniform sampler2D sampler2;
uniform sampler2D bgl_RenderedTexture;

// Shader settings
const bool DOV_ENABLED = true;
const bool BLOOM_ENABLED = true;
const bool AA_ENABLED = true;
const bool SSAO_ENABLED = true;
const int SSAO_SAMPLES = 8;
const float BLOOM_STRENGTH = 0.3;
const float HYPERFOCAL = float( 4 );

// Shader code
const float PICONSTANT = 3.14159265;

uniform float aspectRatio;
uniform float near;
uniform float far;

float samples = float( 0 );
float getDepth( vec2 coord );
float getCursorDepth( vec2 coord );
float expDepth2linearDepth( vec2 coord );
float getSSAO();

vec4 getAA();
vec4 getBloom();
vec4 getBlurredColor();
vec4 getSample( vec2 coord, vec2 aspectCorrection );
vec4 getSampleWithBoundsCheck( vec2 offset );
vec2 space;

void main() {
	vec4 baseColor;
	vec4 baseDoF;

	if ( AA_ENABLED ) {
		baseColor = getAA();
	} else {
		baseColor = texture2D( sampler0, gl_TexCoord[0].st );
	}

	if ( SSAO_ENABLED ) {
		baseColor *= getSSAO();
	}

	if ( BLOOM_ENABLED ) {
		baseColor = mix( baseColor, getBloom(), 0.5 );
	}

	float depth = getDepth( gl_TexCoord[0].st );
	float cursorDepth = getCursorDepth( vec2( 0.5, 0.5 ) );

	if ( DOV_ENABLED ) {
		if ( cursorDepth > HYPERFOCAL ) {
			if ( depth < HYPERFOCAL ) {
				if ( depth < 0.5 * HYPERFOCAL ) {
					baseDoF = getBlurredColor();
				} else {
					baseDoF = mix( baseColor, getBlurredColor(), sin( 2.0 * ( depth - 0.25 * HYPERFOCAL ) / HYPERFOCAL * PICONSTANT) / 2.0 + 0.5 );
				}
			} else {
				baseDoF = baseColor;
			}
		} else {
			if ( depth - cursorDepth > ( cursorDepth * HYPERFOCAL) / ( HYPERFOCAL - cursorDepth ) ) {
				baseDoF = getBlurredColor();
			} else if ( depth > cursorDepth ) {
				baseDoF = mix( baseColor, getBlurredColor(), sin( PICONSTANT * ( ( depth - cursorDepth ) - 0.5 * ( ( cursorDepth * HYPERFOCAL ) / ( HYPERFOCAL - cursorDepth ) ) ) / ( ( cursorDepth * HYPERFOCAL ) / ( HYPERFOCAL - cursorDepth ) ) ) / 2.0 + 0.5);
			} else if ( depth <= 0.5 * cursorDepth ) {
				baseDoF = getBlurredColor();
			} else {
				baseDoF = mix( baseColor, getBlurredColor(), sin(2.0 * (depth - 0.25 * cursorDepth) / cursorDepth * PICONSTANT) / 2.0 + 0.5 );
			}
		}
		baseColor = mix( baseColor, baseDoF, 0.5 );
	}

	gl_FragColor = baseColor;
}

//DEPTH READER
float expDepth2linearDepth( vec2 coord ) {
	float depth = texture2D( sampler1, coord ).x;
	float depth2 = texture2D( sampler2, coord ).x;
	if ( depth2 < 1.0 ) {
		depth = depth2;
	}
	return ( 2.0 * near ) / ( far + near - depth * ( far - near ) );
}

float getDepth( vec2 coord ) {
	float depth = texture2D( sampler1, coord ).x;
	float depth2 = texture2D( sampler2, coord ).x;
	if ( depth2 < 1.0 ) {
		depth = depth2;
	}
    depth = 2.0 * near * far / ( far + near - ( 2.0 * depth - 1.0 ) * ( far - near ) );
    return depth;
}

//SSAO METHODS
float compare( float depth1, float depth2 ) {
	float aoMultiplier = 10000.0;
	float partialAO = min( 1.0, max( 0.0, depth1 - depth2 ) * aoMultiplier );
	if ( 0.0 < ( depth1 - depth2 ) && ( depth1 - depth2 ) < 0.02 ) //Smooth fading
		partialAO *= 1.0 - ( depth1 - depth2 ) * 50.0;
	if ( ( depth1 - depth2 ) > 0.02 ) //If difference > depthdiff, no occlusion
		partialAO = 0.0;
	return partialAO;
}

//ANTIALIAS METHODS
vec4 getAA() {
	vec4 newColor = vec4(0.0);

	float depth = expDepth2linearDepth(gl_TexCoord[0].xy);
	vec2 aspectCorrection = vec2(1.0, aspectRatio) * 0.005;
	float offsetx = 0.12 * aspectCorrection.x;
	float offsety = 0.12 * aspectCorrection.y;
	float depthThreshold=0.01;

	if ( abs( depth - expDepth2linearDepth( gl_TexCoord[0].xy + vec2( offsetx, 0 ) ) ) > depthThreshold || abs( depth - expDepth2linearDepth( gl_TexCoord[0].xy + vec2( -offsetx, 0 ) ) ) > depthThreshold || abs( depth - expDepth2linearDepth( gl_TexCoord[0].xy + vec2( 0, offsety ) ) ) > depthThreshold || abs( depth - expDepth2linearDepth( gl_TexCoord[0].xy + vec2( 0, -offsety ) ) ) > depthThreshold ) {
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-offsetx, offsety));
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(0, offsety));
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(offsetx, offsety));
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-offsetx, 0));
		newColor += texture2D(sampler0, gl_TexCoord[0].st);
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(offsetx, 0));
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-offsetx, -offsety));
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(0, -offsety));
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(offsetx, -offsety));
		newColor /= 9.0;
	} else
		newColor=texture2D(sampler0, gl_TexCoord[0].st);

	return newColor;
}

float getSSAO() {
	float activePixelDepth = expDepth2linearDepth( gl_TexCoord[0].xy );
	float neighbourPixelDepth;
	vec2 aspectCorrection = vec2( 1.0, aspectRatio ) * 0.005;
	float offsetX = 0.13 * aspectCorrection.x;
	float offsetY = 0.13 * aspectCorrection.y;
	float ao = 0.0;
	float aoscale = 1.0;
	int count = 0;

	for ( int i = 0; i < SSAO_SAMPLES; i++ ) {
		count += 4;
		neighbourPixelDepth = expDepth2linearDepth( gl_TexCoord[0].st + vec2( offsetX, offsetY ) );
		ao += compare( activePixelDepth,neighbourPixelDepth)/aoscale;

		neighbourPixelDepth = expDepth2linearDepth( gl_TexCoord[0].st + vec2( -offsetX, offsetY ) );
		ao += compare( activePixelDepth, neighbourPixelDepth ) / aoscale;

		neighbourPixelDepth = expDepth2linearDepth( gl_TexCoord[0].st + vec2( offsetX, -offsetY ) );
		ao += compare(activePixelDepth,neighbourPixelDepth)/aoscale;

		neighbourPixelDepth = expDepth2linearDepth( gl_TexCoord[0].st + vec2( -offsetX, -offsetY ) );
		ao += compare( activePixelDepth, neighbourPixelDepth ) / aoscale;

		offsetX *= 1.50;
		offsetY *= 1.50;
		aoscale *= 1.1;
	}

	ao /= float( count );
	ao = 1.0 - ao;
	ao = clamp( ao, 0.0, 0.8 );
	ao = ao * ( 1.0 / 0.8 );

	return ao;
}

float getCursorDepth( vec2 coord ) {
    return 2.0 * near * far / ( far + near - ( 2.0 * texture2D( sampler1, coord ).x - 1.0 ) * ( far - near ) );
}

vec4 getBloom() {
	vec4 sum = vec4(0);
	vec2 texcoord = vec2(gl_TexCoord[0]);
	for( int i = -3; i < 3; i++) { // Lower loop count for performance
		for ( int j = -3; j < 3; j++ ) {
			sum += texture2D( bgl_RenderedTexture, texcoord + vec2( j, i ) * 0.004 ) * BLOOM_STRENGTH;
		}
	}
	if (texture2D(bgl_RenderedTexture, texcoord).r < 0.3) {
		sum = sum*sum*0.012 + texture2D(bgl_RenderedTexture, texcoord);
	} else {
		if (texture2D(bgl_RenderedTexture, texcoord).r < 0.5) {
			sum = sum*sum*0.009 + texture2D(bgl_RenderedTexture, texcoord);
		} else {
			sum = sum*sum*0.0075 + texture2D(bgl_RenderedTexture, texcoord);
		}
	}
	return sum;
}

vec4 getBlurredColor() {
	vec4 blurredColor = vec4( 0.0 );
	float depth = getDepth( gl_TexCoord[0].xy );
	vec2 aspectCorrection = vec2( 1.0, aspectRatio ) * 0.005;

	vec2 ac0_4 = 0.4 * aspectCorrection;	// 0.4
	vec2 ac0_29 = 0.29 * aspectCorrection;	// 0.29
	vec2 ac0_15 = 0.15 * aspectCorrection;	// 0.15
	vec2 ac0_37 = 0.37 * aspectCorrection;	// 0.37

	vec2 lowSpace = gl_TexCoord[0].st;
	vec2 highSpace = 1.0 - lowSpace;
	space = vec2( min( lowSpace.s, highSpace.s ), min( lowSpace.t, highSpace.t ) );

	if (space.s >= ac0_4.s && space.t >= ac0_4.t) {

		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(0.0, ac0_4.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(ac0_4.s, 0.0));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(0.0, -ac0_4.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-ac0_4.s, 0.0));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(ac0_29.s, -ac0_29.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(ac0_29.s, ac0_29.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-ac0_29.s, ac0_29.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-ac0_29.s, -ac0_29.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(ac0_15.s, ac0_37.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-ac0_37.s, ac0_15.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(ac0_37.s, -ac0_15.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-ac0_15.s, -ac0_37.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-ac0_15.s, ac0_37.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(ac0_37.s, ac0_15.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-ac0_37.s, -ac0_15.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(ac0_15.s, -ac0_37.t));
	    blurredColor /= 16.0;

	} else {

		blurredColor += getSampleWithBoundsCheck(vec2(0.0, ac0_4.t));
		blurredColor += getSampleWithBoundsCheck(vec2(ac0_4.s, 0.0));
		blurredColor += getSampleWithBoundsCheck(vec2(0.0, -ac0_4.t));
		blurredColor += getSampleWithBoundsCheck(vec2(-ac0_4.s, 0.0));
		blurredColor += getSampleWithBoundsCheck(vec2(ac0_29.s, -ac0_29.t));
		blurredColor += getSampleWithBoundsCheck(vec2(ac0_29.s, ac0_29.t));
		blurredColor += getSampleWithBoundsCheck(vec2(-ac0_29.s, ac0_29.t));
		blurredColor += getSampleWithBoundsCheck(vec2(-ac0_29.s, -ac0_29.t));
		blurredColor += getSampleWithBoundsCheck(vec2(ac0_15.s, ac0_37.t));
		blurredColor += getSampleWithBoundsCheck(vec2(-ac0_37.s, ac0_15.t));
		blurredColor += getSampleWithBoundsCheck(vec2(ac0_37.s, -ac0_15.t));
		blurredColor += getSampleWithBoundsCheck(vec2(-ac0_15.s, -ac0_37.t));
		blurredColor += getSampleWithBoundsCheck(vec2(-ac0_15.s, ac0_37.t));
		blurredColor += getSampleWithBoundsCheck(vec2(ac0_37.s, ac0_15.t));
		blurredColor += getSampleWithBoundsCheck(vec2(-ac0_37.s, -ac0_15.t));
		blurredColor += getSampleWithBoundsCheck(vec2(ac0_15.s, -ac0_37.t));
	    blurredColor /= samples;

	}

    return blurredColor;
}

vec4 getSampleWithBoundsCheck(vec2 offset) {
	vec2 coord = gl_TexCoord[0].st + offset;
	if (coord.s <= 1.0 && coord.s >= 0.0 && coord.t <= 1.0 && coord.t >= 0.0) {
		samples += 1.0;
		return texture2D(sampler0, coord);
	} else {
		return vec4(0.0);
	}
}

You can enable/disable parts of it if you so please.

Why doesnt the author add these to the "alternate shaders" folder in the default download?
I dont understand how to edit the shaders myself, and when i do, it simply doesnt work.
Why make things more complicated and have ppl scour through the thread, rather than having everything (well done) collected and gathered in 1 simple download?

#1032 Jan 28, 2011

daxnitro

Gold Miner
Join Date: 1/7/2011
Posts: 382
Member Details

Quote from Baleur »

Quote from blackops7799 »

Combined the bloom, ssao, and dof that were all posted here into one.

uniform sampler2D sampler0;
uniform sampler2D sampler1;
uniform sampler2D sampler2;
uniform sampler2D bgl_RenderedTexture;

// Shader settings
const bool DOV_ENABLED = true;
const bool BLOOM_ENABLED = true;
const bool AA_ENABLED = true;
const bool SSAO_ENABLED = true;
const int SSAO_SAMPLES = 8;
const float BLOOM_STRENGTH = 0.3;
const float HYPERFOCAL = float( 4 );

// Shader code
const float PICONSTANT = 3.14159265;

uniform float aspectRatio;
uniform float near;
uniform float far;

float samples = float( 0 );
float getDepth( vec2 coord );
float getCursorDepth( vec2 coord );
float expDepth2linearDepth( vec2 coord );
float getSSAO();

vec4 getAA();
vec4 getBloom();
vec4 getBlurredColor();
vec4 getSample( vec2 coord, vec2 aspectCorrection );
vec4 getSampleWithBoundsCheck( vec2 offset );
vec2 space;

void main() {
	vec4 baseColor;
	vec4 baseDoF;

	if ( AA_ENABLED ) {
		baseColor = getAA();
	} else {
		baseColor = texture2D( sampler0, gl_TexCoord[0].st );
	}

	if ( SSAO_ENABLED ) {
		baseColor *= getSSAO();
	}

	if ( BLOOM_ENABLED ) {
		baseColor = mix( baseColor, getBloom(), 0.5 );
	}

	float depth = getDepth( gl_TexCoord[0].st );
	float cursorDepth = getCursorDepth( vec2( 0.5, 0.5 ) );

	if ( DOV_ENABLED ) {
		if ( cursorDepth > HYPERFOCAL ) {
			if ( depth < HYPERFOCAL ) {
				if ( depth < 0.5 * HYPERFOCAL ) {
					baseDoF = getBlurredColor();
				} else {
					baseDoF = mix( baseColor, getBlurredColor(), sin( 2.0 * ( depth - 0.25 * HYPERFOCAL ) / HYPERFOCAL * PICONSTANT) / 2.0 + 0.5 );
				}
			} else {
				baseDoF = baseColor;
			}
		} else {
			if ( depth - cursorDepth > ( cursorDepth * HYPERFOCAL) / ( HYPERFOCAL - cursorDepth ) ) {
				baseDoF = getBlurredColor();
			} else if ( depth > cursorDepth ) {
				baseDoF = mix( baseColor, getBlurredColor(), sin( PICONSTANT * ( ( depth - cursorDepth ) - 0.5 * ( ( cursorDepth * HYPERFOCAL ) / ( HYPERFOCAL - cursorDepth ) ) ) / ( ( cursorDepth * HYPERFOCAL ) / ( HYPERFOCAL - cursorDepth ) ) ) / 2.0 + 0.5);
			} else if ( depth <= 0.5 * cursorDepth ) {
				baseDoF = getBlurredColor();
			} else {
				baseDoF = mix( baseColor, getBlurredColor(), sin(2.0 * (depth - 0.25 * cursorDepth) / cursorDepth * PICONSTANT) / 2.0 + 0.5 );
			}
		}
		baseColor = mix( baseColor, baseDoF, 0.5 );
	}

	gl_FragColor = baseColor;
}

//DEPTH READER
float expDepth2linearDepth( vec2 coord ) {
	float depth = texture2D( sampler1, coord ).x;
	float depth2 = texture2D( sampler2, coord ).x;
	if ( depth2 < 1.0 ) {
		depth = depth2;
	}
	return ( 2.0 * near ) / ( far + near - depth * ( far - near ) );
}

float getDepth( vec2 coord ) {
	float depth = texture2D( sampler1, coord ).x;
	float depth2 = texture2D( sampler2, coord ).x;
	if ( depth2 < 1.0 ) {
		depth = depth2;
	}
    depth = 2.0 * near * far / ( far + near - ( 2.0 * depth - 1.0 ) * ( far - near ) );
    return depth;
}

//SSAO METHODS
float compare( float depth1, float depth2 ) {
	float aoMultiplier = 10000.0;
	float partialAO = min( 1.0, max( 0.0, depth1 - depth2 ) * aoMultiplier );
	if ( 0.0 < ( depth1 - depth2 ) && ( depth1 - depth2 ) < 0.02 ) //Smooth fading
		partialAO *= 1.0 - ( depth1 - depth2 ) * 50.0;
	if ( ( depth1 - depth2 ) > 0.02 ) //If difference > depthdiff, no occlusion
		partialAO = 0.0;
	return partialAO;
}

//ANTIALIAS METHODS
vec4 getAA() {
	vec4 newColor = vec4(0.0);

	float depth = expDepth2linearDepth(gl_TexCoord[0].xy);
	vec2 aspectCorrection = vec2(1.0, aspectRatio) * 0.005;
	float offsetx = 0.12 * aspectCorrection.x;
	float offsety = 0.12 * aspectCorrection.y;
	float depthThreshold=0.01;

	if ( abs( depth - expDepth2linearDepth( gl_TexCoord[0].xy + vec2( offsetx, 0 ) ) ) > depthThreshold || abs( depth - expDepth2linearDepth( gl_TexCoord[0].xy + vec2( -offsetx, 0 ) ) ) > depthThreshold || abs( depth - expDepth2linearDepth( gl_TexCoord[0].xy + vec2( 0, offsety ) ) ) > depthThreshold || abs( depth - expDepth2linearDepth( gl_TexCoord[0].xy + vec2( 0, -offsety ) ) ) > depthThreshold ) {
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-offsetx, offsety));
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(0, offsety));
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(offsetx, offsety));
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-offsetx, 0));
		newColor += texture2D(sampler0, gl_TexCoord[0].st);
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(offsetx, 0));
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-offsetx, -offsety));
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(0, -offsety));
		newColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(offsetx, -offsety));
		newColor /= 9.0;
	} else
		newColor=texture2D(sampler0, gl_TexCoord[0].st);

	return newColor;
}

float getSSAO() {
	float activePixelDepth = expDepth2linearDepth( gl_TexCoord[0].xy );
	float neighbourPixelDepth;
	vec2 aspectCorrection = vec2( 1.0, aspectRatio ) * 0.005;
	float offsetX = 0.13 * aspectCorrection.x;
	float offsetY = 0.13 * aspectCorrection.y;
	float ao = 0.0;
	float aoscale = 1.0;
	int count = 0;

	for ( int i = 0; i < SSAO_SAMPLES; i++ ) {
		count += 4;
		neighbourPixelDepth = expDepth2linearDepth( gl_TexCoord[0].st + vec2( offsetX, offsetY ) );
		ao += compare( activePixelDepth,neighbourPixelDepth)/aoscale;

		neighbourPixelDepth = expDepth2linearDepth( gl_TexCoord[0].st + vec2( -offsetX, offsetY ) );
		ao += compare( activePixelDepth, neighbourPixelDepth ) / aoscale;

		neighbourPixelDepth = expDepth2linearDepth( gl_TexCoord[0].st + vec2( offsetX, -offsetY ) );
		ao += compare(activePixelDepth,neighbourPixelDepth)/aoscale;

		neighbourPixelDepth = expDepth2linearDepth( gl_TexCoord[0].st + vec2( -offsetX, -offsetY ) );
		ao += compare( activePixelDepth, neighbourPixelDepth ) / aoscale;

		offsetX *= 1.50;
		offsetY *= 1.50;
		aoscale *= 1.1;
	}

	ao /= float( count );
	ao = 1.0 - ao;
	ao = clamp( ao, 0.0, 0.8 );
	ao = ao * ( 1.0 / 0.8 );

	return ao;
}

float getCursorDepth( vec2 coord ) {
    return 2.0 * near * far / ( far + near - ( 2.0 * texture2D( sampler1, coord ).x - 1.0 ) * ( far - near ) );
}

vec4 getBloom() {
	vec4 sum = vec4(0);
	vec2 texcoord = vec2(gl_TexCoord[0]);
	for( int i = -3; i < 3; i++) { // Lower loop count for performance
		for ( int j = -3; j < 3; j++ ) {
			sum += texture2D( bgl_RenderedTexture, texcoord + vec2( j, i ) * 0.004 ) * BLOOM_STRENGTH;
		}
	}
	if (texture2D(bgl_RenderedTexture, texcoord).r < 0.3) {
		sum = sum*sum*0.012 + texture2D(bgl_RenderedTexture, texcoord);
	} else {
		if (texture2D(bgl_RenderedTexture, texcoord).r < 0.5) {
			sum = sum*sum*0.009 + texture2D(bgl_RenderedTexture, texcoord);
		} else {
			sum = sum*sum*0.0075 + texture2D(bgl_RenderedTexture, texcoord);
		}
	}
	return sum;
}

vec4 getBlurredColor() {
	vec4 blurredColor = vec4( 0.0 );
	float depth = getDepth( gl_TexCoord[0].xy );
	vec2 aspectCorrection = vec2( 1.0, aspectRatio ) * 0.005;

	vec2 ac0_4 = 0.4 * aspectCorrection;	// 0.4
	vec2 ac0_29 = 0.29 * aspectCorrection;	// 0.29
	vec2 ac0_15 = 0.15 * aspectCorrection;	// 0.15
	vec2 ac0_37 = 0.37 * aspectCorrection;	// 0.37

	vec2 lowSpace = gl_TexCoord[0].st;
	vec2 highSpace = 1.0 - lowSpace;
	space = vec2( min( lowSpace.s, highSpace.s ), min( lowSpace.t, highSpace.t ) );

	if (space.s >= ac0_4.s && space.t >= ac0_4.t) {

		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(0.0, ac0_4.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(ac0_4.s, 0.0));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(0.0, -ac0_4.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-ac0_4.s, 0.0));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(ac0_29.s, -ac0_29.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(ac0_29.s, ac0_29.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-ac0_29.s, ac0_29.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-ac0_29.s, -ac0_29.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(ac0_15.s, ac0_37.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-ac0_37.s, ac0_15.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(ac0_37.s, -ac0_15.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-ac0_15.s, -ac0_37.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-ac0_15.s, ac0_37.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(ac0_37.s, ac0_15.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(-ac0_37.s, -ac0_15.t));
		blurredColor += texture2D(sampler0, gl_TexCoord[0].st + vec2(ac0_15.s, -ac0_37.t));
	    blurredColor /= 16.0;

	} else {

		blurredColor += getSampleWithBoundsCheck(vec2(0.0, ac0_4.t));
		blurredColor += getSampleWithBoundsCheck(vec2(ac0_4.s, 0.0));
		blurredColor += getSampleWithBoundsCheck(vec2(0.0, -ac0_4.t));
		blurredColor += getSampleWithBoundsCheck(vec2(-ac0_4.s, 0.0));
		blurredColor += getSampleWithBoundsCheck(vec2(ac0_29.s, -ac0_29.t));
		blurredColor += getSampleWithBoundsCheck(vec2(ac0_29.s, ac0_29.t));
		blurredColor += getSampleWithBoundsCheck(vec2(-ac0_29.s, ac0_29.t));
		blurredColor += getSampleWithBoundsCheck(vec2(-ac0_29.s, -ac0_29.t));
		blurredColor += getSampleWithBoundsCheck(vec2(ac0_15.s, ac0_37.t));
		blurredColor += getSampleWithBoundsCheck(vec2(-ac0_37.s, ac0_15.t));
		blurredColor += getSampleWithBoundsCheck(vec2(ac0_37.s, -ac0_15.t));
		blurredColor += getSampleWithBoundsCheck(vec2(-ac0_15.s, -ac0_37.t));
		blurredColor += getSampleWithBoundsCheck(vec2(-ac0_15.s, ac0_37.t));
		blurredColor += getSampleWithBoundsCheck(vec2(ac0_37.s, ac0_15.t));
		blurredColor += getSampleWithBoundsCheck(vec2(-ac0_37.s, -ac0_15.t));
		blurredColor += getSampleWithBoundsCheck(vec2(ac0_15.s, -ac0_37.t));
	    blurredColor /= samples;

	}

    return blurredColor;
}

vec4 getSampleWithBoundsCheck(vec2 offset) {
	vec2 coord = gl_TexCoord[0].st + offset;
	if (coord.s <= 1.0 && coord.s >= 0.0 && coord.t <= 1.0 && coord.t >= 0.0) {
		samples += 1.0;
		return texture2D(sampler0, coord);
	} else {
		return vec4(0.0);
	}
}

You can enable/disable parts of it if you so please.

Why doesnt the author add these to the "alternate shaders" folder in the default download?
I dont understand how to edit the shaders myself, and when i do, it simply doesnt work.
Why make things more complicated and have ppl scour through the thread, rather than having everything (well done) collected and gathered in 1 simple download?

I'm looking into getting some kind of repository for shaders, but I don't have time to maintain a list or download with everyone's latest shaders. It's not that I'm trying to make things more complicated, but this isn't my job. I do this in my leisure time for fun and honestly maintaining copies of everyone's shaders isn't what I call fun. It also subtracts from my time spent working on the mod itself. :tongue.gif: If a volunteer wanted to maintain a shader pack or start a wiki page or repo or something, I would gladly link to that in the main post.

#1033 Jan 28, 2011

Vire

Out of the Water
Join Date: 1/27/2011
Posts: 5
Member Details

Quote from daxnitro »
Quote from Vire »
Parallax mapping is hard to understand with out using dynamic lighting. That is the biggest reason why no one can really see it.

Yep. :tongue.gif: The lack of real light sources is killing me. Redoing the lighting would be the single best thing that could happen to this game. I've experimented a lot with this and hope to eventually find a solution that both looks good and performs well. In an update soon I might at least try making the sun and moon light sources.

Yeah ray trace lighting gets really expensive. Best of luck, don't really know the programing side of things just the art.

#1034 Jan 28, 2011

CleverBullet

Out of the Water
Join Date: 11/4/2010
Posts: 3
Member Details

ATI 4850 1GB reporting in here, shaders are working great! it worked with 10.12 drivers and now 11.1 drivers as well.

#1035 Jan 28, 2011

blackops7799

Tree Puncher
Join Date: 1/27/2011
Posts: 13
Member Details

Quote from daxnitro »
I'm looking into getting some kind of repository for shaders, but I don't have time to maintain a list or download with everyone's latest shaders. It's not that I'm trying to make things more complicated, but this isn't my job. I do this in my leisure time for fun and honestly maintaining copies of everyone's shaders isn't what I call fun. It also subtracts from my time spent working on the mod itself. :tongue.gif: If a volunteer wanted to maintain a shader pack or start a wiki page or repo or something, I would gladly link to that in the main post.

Is it possible to get it to load a bunch a different shader files all at once, or do you have to put all shader code in either the base or final? That, for starts, would make it much easier to maintain. Just drag and drop files.

#1036 Jan 28, 2011

daxnitro

Gold Miner
Join Date: 1/7/2011
Posts: 382
Member Details

Quote from blackops7799 »
Quote from daxnitro »
I'm looking into getting some kind of repository for shaders, but I don't have time to maintain a list or download with everyone's latest shaders. It's not that I'm trying to make things more complicated, but this isn't my job. I do this in my leisure time for fun and honestly maintaining copies of everyone's shaders isn't what I call fun. It also subtracts from my time spent working on the mod itself. :tongue.gif: If a volunteer wanted to maintain a shader pack or start a wiki page or repo or something, I would gladly link to that in the main post.

Is it possible to get it to load a bunch a different shader files all at once, or do you have to put all shader code in either the base or final? That, for starts, would make it much easier to maintain. Just drag and drop files.

Yeah, for now they all have to go into base or final. I believe NVidia graphics cards can use #include directives to import code from other files, but ATI cards can't so I'm not sure if I'll ever be able to set up a drag and drop system.

#1037 Jan 28, 2011

SpinBuilder

Void Walker
Location: In your mind.
Join Date: 9/24/2010
Posts: 1,640
Minecraft: SpinBuilder
Member Details

Not working for me. pretty sure it's my crappy graphics but there might be hope. :iapprove:

      Minecraft has crashed!
      ----------------------

Minecraft has stopped running because it encountered a problem.

If you wish to report this, please copy this entire text and email it to [email protected].
Please include a description of what you did when the error occured.



--- BEGIN ERROR REPORT a1dce528 --------
Generated 1/28/11 9:43 PM

Minecraft: Minecraft Beta 1.2_02
OS: Windows Vista (x86) version 6.0
Java: 1.6.0_22, Sun Microsystems Inc.
VM: Java HotSpot(TM) Client VM (mixed mode), Sun Microsystems Inc.
LWJGL: 2.4.2
OpenGL: Intel 965/963 Graphics Media Accelerator version 1.5.0 - Build 7.14.10.1409, Intel

java.lang.ExceptionInInitializerError
	at ll.c(SourceFile:406)
	at ll.b(SourceFile:343)
	at net.minecraft.client.Minecraft.run(SourceFile:668)
	at java.lang.Thread.run(Unknown Source)
Caused by: java.lang.IllegalStateException: Function is not supported
	at org.lwjgl.BufferChecks.checkFunctionAddress(BufferChecks.java:64)
	at org.lwjgl.opengl.ARBShaderObjects.glCreateProgramObjectARB(ARBShaderObjects.java:139)
	at Shaders.initShaders(Shaders.java:26)
	at Shaders.<init>(Shaders.java:22)
	at Shaders.<clinit>(Shaders.java:269)
	... 4 more
--- END ERROR REPORT eed2d4a6 ----------

Member of the official ctm pillar club

#1038 Jan 29, 2011

Domino

IRC HACKER
Location: San Diego
Join Date: 9/8/2010
Posts: 1,400
Minecraft: Domino
PMC: Domino
Member Details

Quote from CleverBullet »
ATI 4850 1GB reporting in here, shaders are working great! it worked with 10.12 drivers and now 11.1 drivers as well.

I have the same card and i'm getting this...

And where can i update my drivers? I seriously don't feel like registering my product to download the drivers. Any other site?

#1040 Jan 29, 2011

dorianGREY

Obsidian Miner
Location: Australia
Join Date: 9/23/2010
Posts: 1,695
Minecraft: dorianGREY326
Member Details

Quote from Domino »
Quote from CleverBullet »
ATI 4850 1GB reporting in here, shaders are working great! it worked with 10.12 drivers and now 11.1 drivers as well.

I have the same card and i'm getting this...

And where can i update my drivers? I seriously don't feel like registering my product to download the drivers. Any other site?

you dont have to register your product to download ati drivers.
if you have a 4850 go here
http://support.amd.com/us/gpudownload/Pages/index.aspx

#1041 Jan 29, 2011

daxnitro

Gold Miner
Join Date: 1/7/2011
Posts: 382
Member Details

Quote from skitey »

got an error @patching...glsl don't working ingame:
using 1.2_02 patcher and latest WildGrass MOD

No minecraft.jar supplied.
Would you like to use the default minecraft.jar (Y/N)? y
Extracting JAR . . .
Applying mods . . .
shaders: Copying files . . .
shaders: Patching bytecode . . .
Exception in thread "main" javassist.NotFoundException: a(..) is not found in bt

        at javassist.CtClassType.getDeclaredMethod(CtClassType.java:1215)
        at Patcher.main(Patcher.java:113)
Recreating JAR . . .
Cleaning up . . .
Done

Well dang. I'm looking at Wild Grass's code and this mod isn't compatible because the author doesn't reobfuscate the renderBottomFace and renderTopFace methods. >:[

If someone slightly Java-savvy wants to try, you can open up my patcher source and change the following lines:

static final String RenderBlocks_renderBottomFace = "a";
	static final String RenderBlocks_renderTopFace = "b";

to

static final String RenderBlocks_renderBottomFace = "renderBottomFace";
	static final String RenderBlocks_renderTopFace = "renderTopFace";

Recompile with something like . . .

javac -cp "../../../tools/javassist.jar;/your/path/to/minecraft.jar" Patcher.java

Then the generated class files should work with Wild Grass if you replace the files in the patcher directory with them. Sorry I can't do this for you myself right now. :tongue.gif:

#1042 Jan 29, 2011

Domino

IRC HACKER
Location: San Diego
Join Date: 9/8/2010
Posts: 1,400
Minecraft: Domino
PMC: Domino
Member Details

Quote from dorianGREY »
you dont have to register your product to download ati drivers.
if you have a 4850 go here
http://support.amd.com/us/gpudownload/Pages/index.aspx

Thanks dude =)

Mod is now working and looking smexy

#1044 Jan 29, 2011

Baleur

Iron Miner
Join Date: 11/11/2010
Posts: 298
Member Details

Quote from daxnitro »
I'm looking into getting some kind of repository for shaders, but I don't have time to maintain a list or download with everyone's latest shaders. It's not that I'm trying to make things more complicated, but this isn't my job. I do this in my leisure time for fun and honestly maintaining copies of everyone's shaders isn't what I call fun. It also subtracts from my time spent working on the mod itself. :tongue.gif: If a volunteer wanted to maintain a shader pack or start a wiki page or repo or something, I would gladly link to that in the main post.

Wasnt suggesting its your job or obligation or anything :smile.gif:
Just wondering, cuz you added that realistic-dof filter to the alternates, so i thought maybe you'd add some of the other popular ones in this thread too.
Like the one i quoted, or just the pure bloom one, or, any of them!

Or like another forum thread where ppl can just post links to ready-made shaderfiles for easy swapping.

#1047 Jan 29, 2011

graboy

Tree Puncher
Join Date: 11/3/2010
Posts: 16
Member Details

Quote from graboy »
Im having lots of issues installing this mod, what directory am I supposed to put in the PATH var? A video tut would be very helpful.

Edit:

Also, these experiments your doing with the redstone torches would be awesome with lava...

This video is fake, but its concepts are awesome. You are so close to achieving this, you just need bump-mapping on the water.

I still need help with this, I know how to edit system strings/variables, I just am not sure what I should add to the string. The one I added but failed to change anything whatsoever is this:

;C:\Program Files (x86)\Java\jre6\bin\java.exe

Can someone please help?

#1048 Jan 29, 2011

Charades

Carpenter
Join Date: 10/23/2010
Posts: 49
Member Details

Quote from BurnseyBoi »
Hi everyone. Been following this mod for a while now, eagerly waiting an ATI version. I have an untouched, freshly downloaded minecraft 1.2_02, with an ATI HD5770 card. When I try to run the installer I get this error
No minecraft.jar supplied.
Would you like to use the default minecraft.jar (Y/N)? Y
Extracting JAR . . .
Applying mods . . .
shaders: Copying files . . .
shaders: Patching bytecode . . .
Exception in thread "main" javassist.NotFoundException: b(..) is not found in kr

        at javassist.CtClassType.getDeclaredMethod(CtClassType.java:1215)
        at Patcher.main(Patcher.java:15)
Recreating JAR . . .
Cleaning up . . .
Done
Press any key to continue . . .
Any ideas what might be wrong?

Having the same issue after a clean install with Wild Grass.

Minecraft Forums

Social Media

Services

Resources

Our Communities
